1/3” CMOS, FHD, H.265, IR, 3 DNR, Wi-Fi, MicroSD, 12900 mAh, 3W

---

Keep your home fully secured.

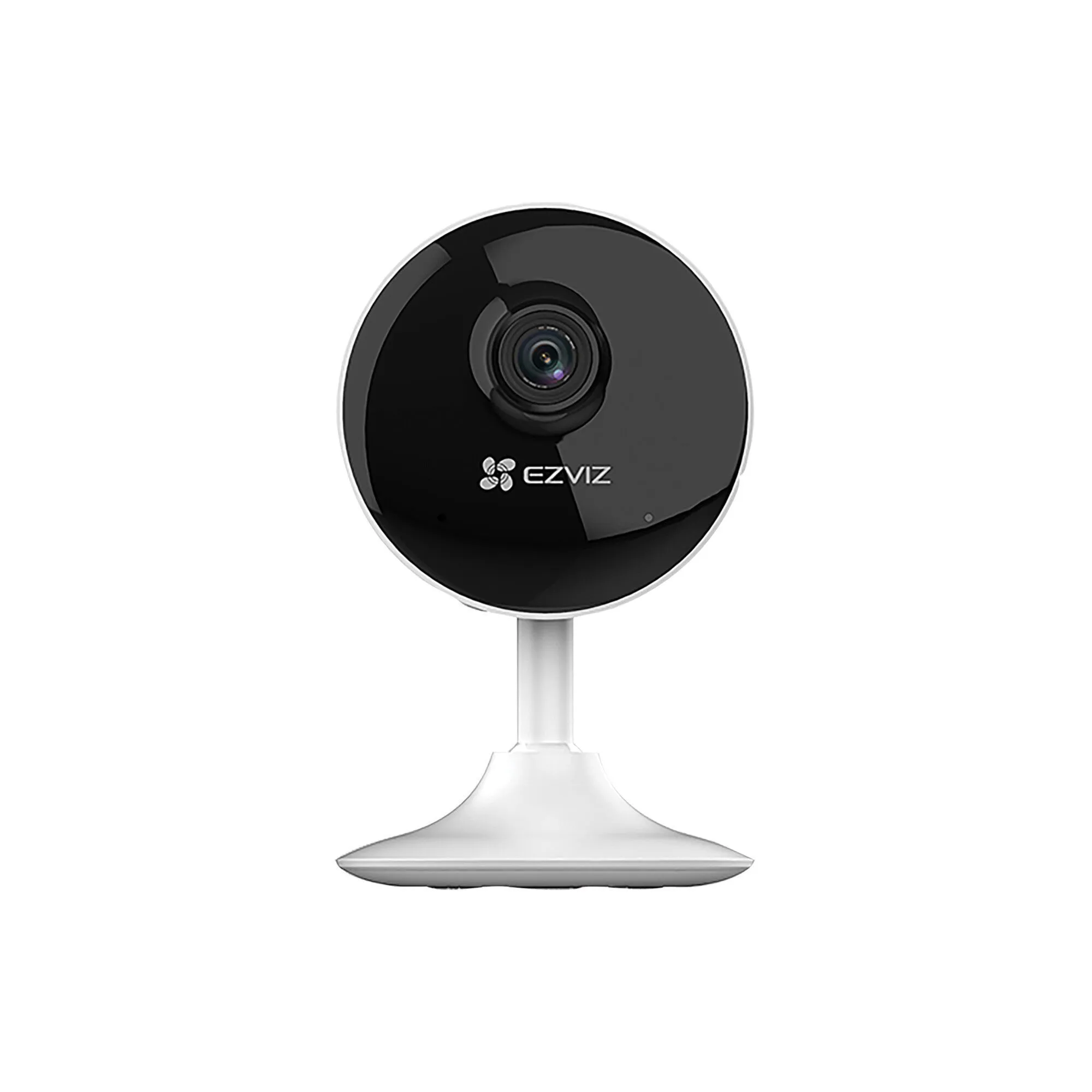

The C1C-B, a compact WiFi camera from EZVIZ, records sweet moments, protects your family, and keeps you updated on what‘s happening at home when you’re away. It’s small enough to be placed almost anywhere, and its simple DIY installation design lets you easily configure this camera for the best possible performance.

Keep your home fully secured.

The C1C-B, a compact WiFi camera from EZVIZ, records sweet moments, protects your family, and keeps you updated on what‘s happening at home when you’re away. It’s small enough to be placed almost anywhere, and its simple DIY installation design lets you easily configure this camera for the best possible performance.

Always in the know.

No more staring at the screen to look through everything and every moment – we’re here to take the shift for you. You can rest assured with the help of the EZVIZ App, as automatic alerts will be sent to you on any suspicious activity captured on camera.

User-friendly audio alerts.

This camera also comes with three audio alert modes when motion is detected – silent, short beep, and siren. Want to hear your visitors while you are in another room? Set the camera on siren mode so you will hear the alert loud and clear.

Records only when you want it to.

The C1C-B camera provides a flexible option for you to record – or not – whenever you think it’s necessary. You can manually activate the Sleep Mode with a tap on your phone, at which you won’t receive notifications and real-time recording will pause.

Two-way audio.

With the C1C-B, you can talk to your child, pet or other family members right on your phone while you’re away.

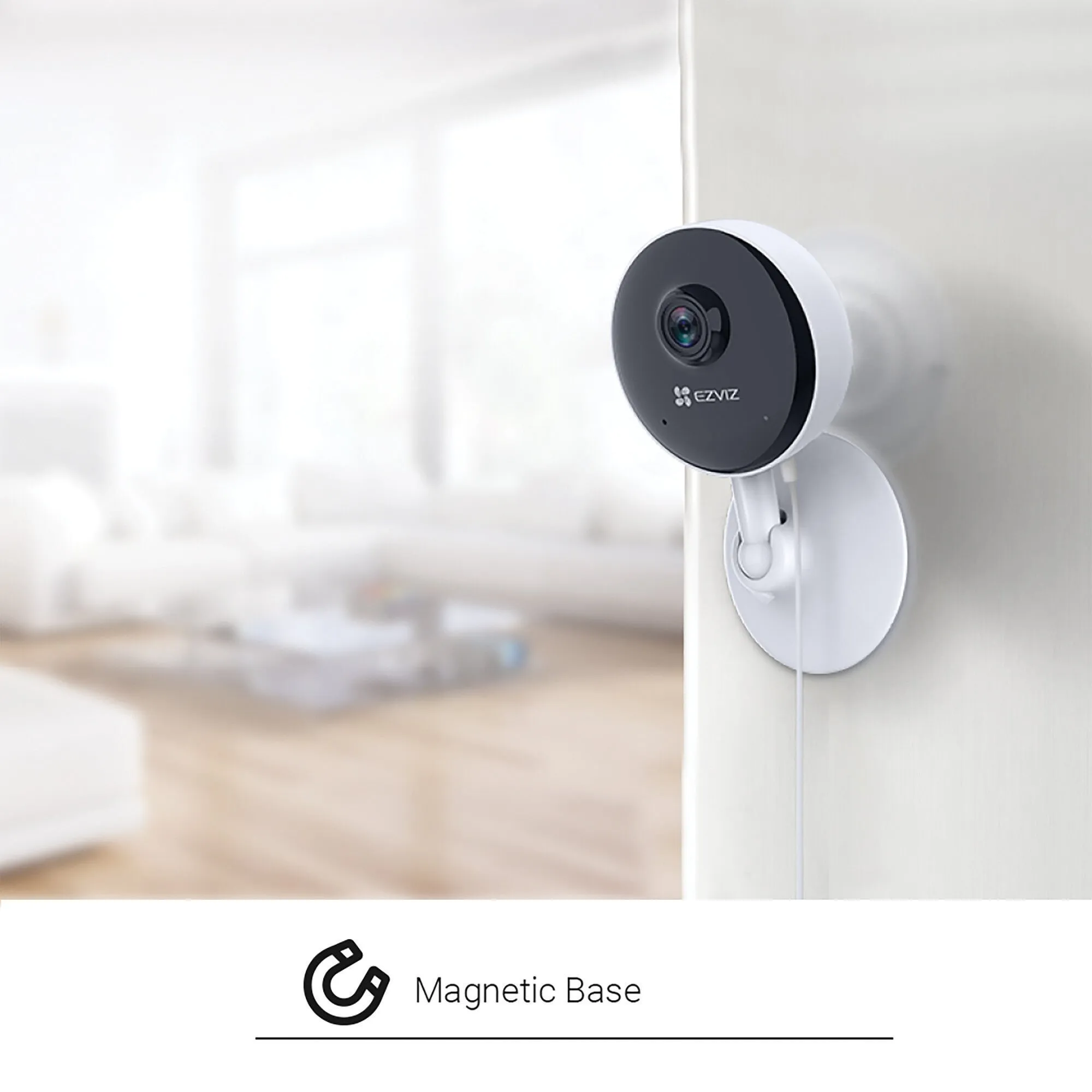

Compact and thoughtful design.

A magnetic base and clever mounting kit make installation a breeze. Mount this camera by attaching it to any magnetic surface, or use the kit to attach it to a wall or ceiling – and you are all set. Its upgraded positioning stem on the base also makes it more flexible – so you get the exact viewing angle that you need.

H.265 video technology.

The camera features the advanced H.265 video compression technology, achieving better video quality using only half the bandwidth and half the storage space of the previous video compression standard (H.264).

We protect your data and privacy.

Protecting your data and privacy is our highest priority. Data transmission between the camera and the EZVIZ Cloud is encrypted from end to end. Only you have the keys to decrypt your data. To get an extra layer of privacy protection, you can always enable the camera’s sleep mode on the EZVIZ App.

Two storage solutions.

With two different storage options, you can choose where to save your recordings. This camera can even save data in two locations at the same time for added backup in case the camera is damaged or your network goes down.

Security at your fingertips.

With the EZVIZ App, you can capture, save, protect, and share what’s valuable to you.

---

Performance
Antenna type	Internal
Remote viewing	Yes
Alarm input/output	Yes
Day/night mode	Yes
Virtual assistant	Amazon Alexa & Apple Siri
Maximum operating distance	12 m
People counting function	Yes
Connectivity technology	Wired & Wireless
Placement supported	Indoor
Type	IP security camera

Design
Fog proof	No
Weatherproof	No
Housing material	Plastic
Product colour	Black, White
Mounting type	Ceiling/Wall/Desk

Camera
Camera shutter type	Electronic
Auto flip	No
Lens viewing angle, diagonal	108°
Lens viewing angle, vertical	50°
Lens viewing angle, horizontal	91°
Minimum illumination	0.5 lx
Camera tilt control	No
Camera pan control	No

Image sensor
Progressive scan	Yes
Optical sensor size	25.4 / 3 mm (1 / 3")
Sensor type	CMOS

Lens system
Lens diameter	2.8 mm
Zoom capability	No
Number of lenses	1

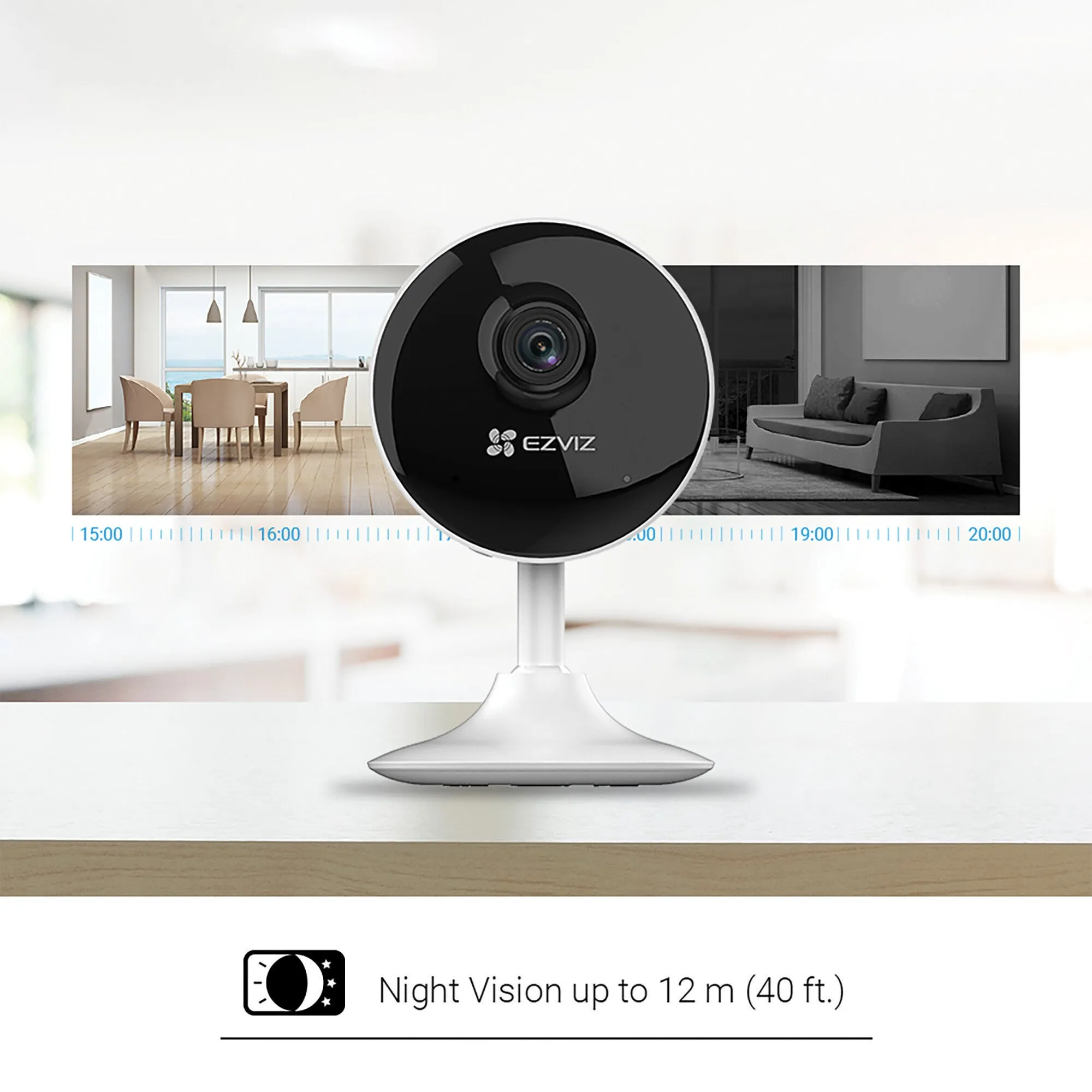

Night vision
Night vision distance	12 m
Night vision	Yes

Video
Video streaming	Yes
Frame rate	25 fps
Video recording	Yes
Video compression formats	H.265
Video formats supported	H.265
Maximum resolution	1920 x 1080 pixels

Audio
Built-in speaker(s)	Yes

Network
Wi-Fi data rate (max)	72 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Networking standards	IEEE 802.11b
Bluetooth	No
Wi-Fi	Yes
Ethernet LAN	Yes

Storage
Cloud services supported	EZVIZ Cloud

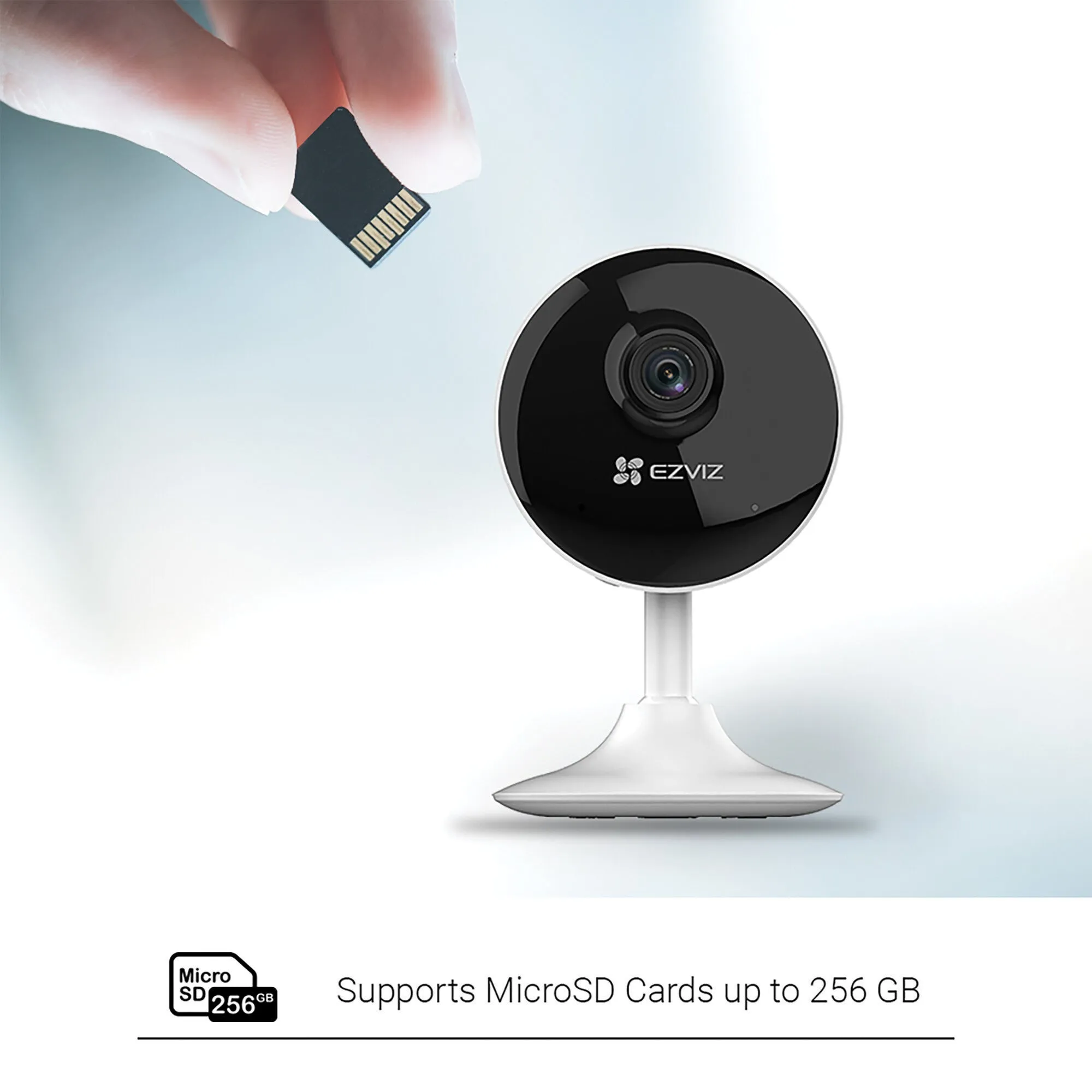

Maximum memory card size	256 GB
Compatible memory cards	MicroSD (TransFlash)
Card reader integrated	Yes
Built-in HDD	No

Ports & interfaces
DC-in jack	Yes
Terminal block port	No
USB port	No
Microphone in	No
Ethernet LAN (RJ-45) ports	1

Security
Active tampering alarm	Yes
Anti-flicker	Yes
Heartbeat	Yes
Mirror	Yes
Digital watermark	Yes
Motion sensor technology	Passive infrared (PIR) sensor
Video motion detection	Yes
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Motion sensor	Yes
Password protection	Yes

Management features
Firmware upgradeable	Yes
Reset button	Yes
Remotely operated	Yes
Web-based management	Yes

Power
DC output voltage	5
Power consumption (max)	3 W
Power consumption (typical)	3 W
Power source type	AC, DC

Operational conditions
Operating relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	-10 - 45 °C

Weight & dimensions
Package type	Box
Package weight	310 g
Package height	149 mm
Package depth	91.5 mm
Package width	87.5 mm
Weight (with stand)	83 g
Height (with stand)	103 mm
Depth (with stand)	63 mm
Width (with stand)	63 mm

Packaging content
Quick start guide	Yes
AC adapter included	Yes
Manual	Yes
Memory card included	No
Mounting kit	Yes
Cables included	AC, USB
Number of cameras	1

Technical details
Number of video streams	2
Sustainability certificates	UL ECOLOGO
Compliance certificates	CE, REACH, RoHS, WEEE
