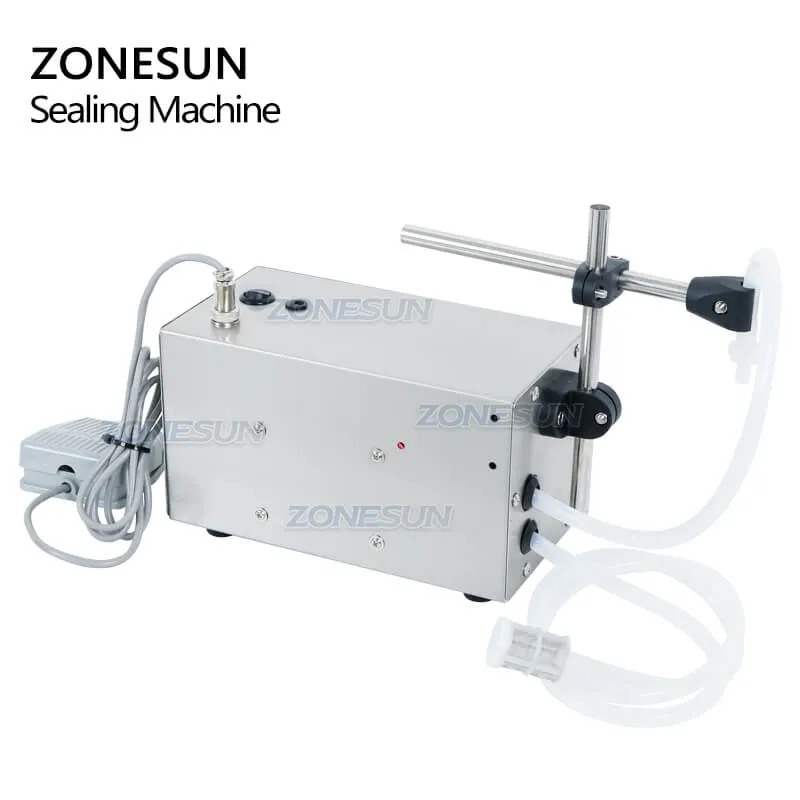

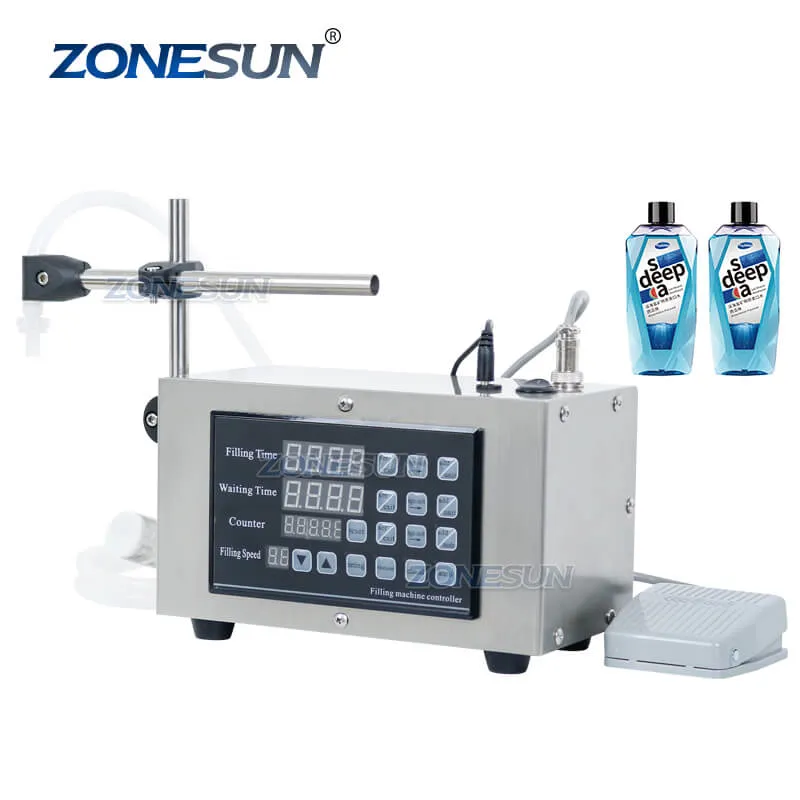

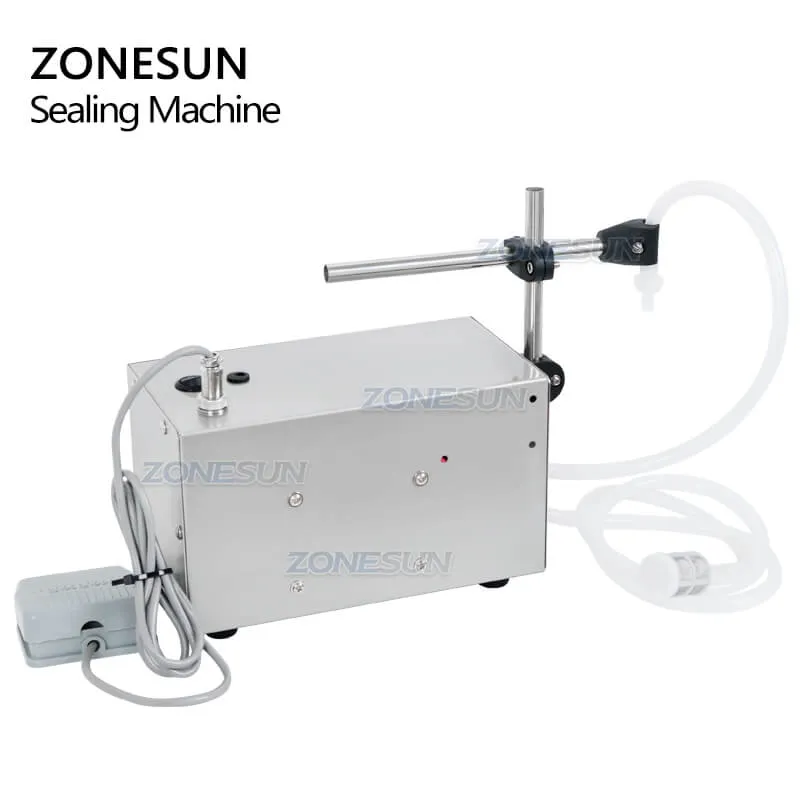

This semi-automatic filling machine is controlled by the diaphragm pump,its small machine body can help you save working space,the filling time and filling speed can be adjusted according to operation need.It is widely used in food,daily chemical and beverage industries.
Parameter
Machine Model:GFK-280
Machine Voltage:110V/220V 50/60HZ
Filling Pump:Diaphragm Pump
Machine Power:40W
Max Flow Rate:2000ml/M(Water)
Recommend Filling Volume:5ml-1000ml
Filling Accuracy:±2%
Machine Size:About 233*120*132mm
Machine Weight:About 2.5kg
Package Size:About 270*215*150mm
Package Weight:About 3kg

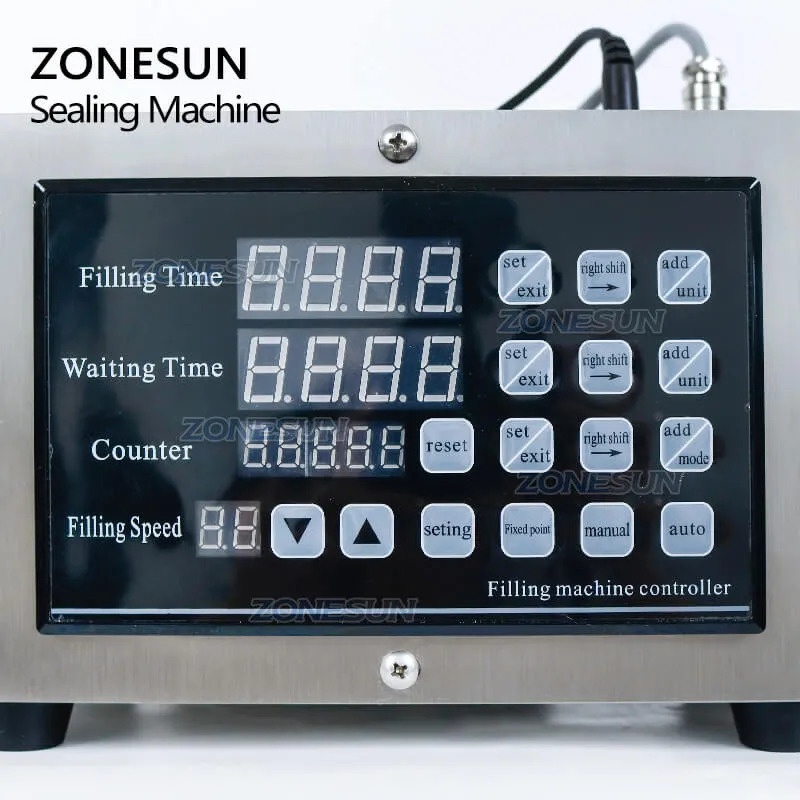

Simple control panel,the filling time and filling speed can be controlled easily.Set the waiting time and choose the automatic working mode,the machine can fill liquid automatically.

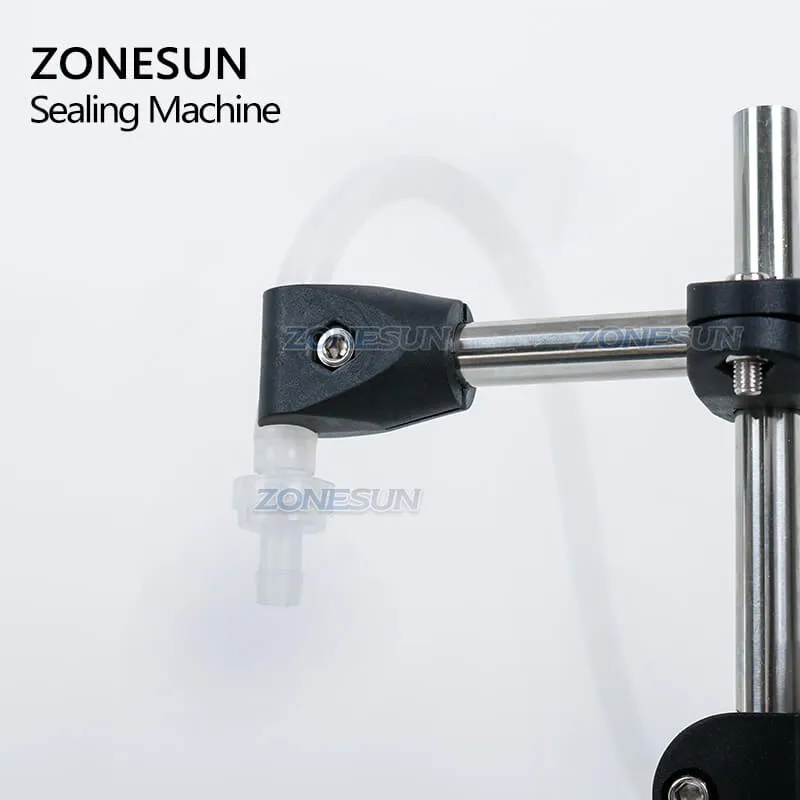

The filling nozzle is with anti-dripping function,this can ensure the filling accuracy.Multiple filling nozzle can be customized as operation need,each nozzle can be controlled separately.

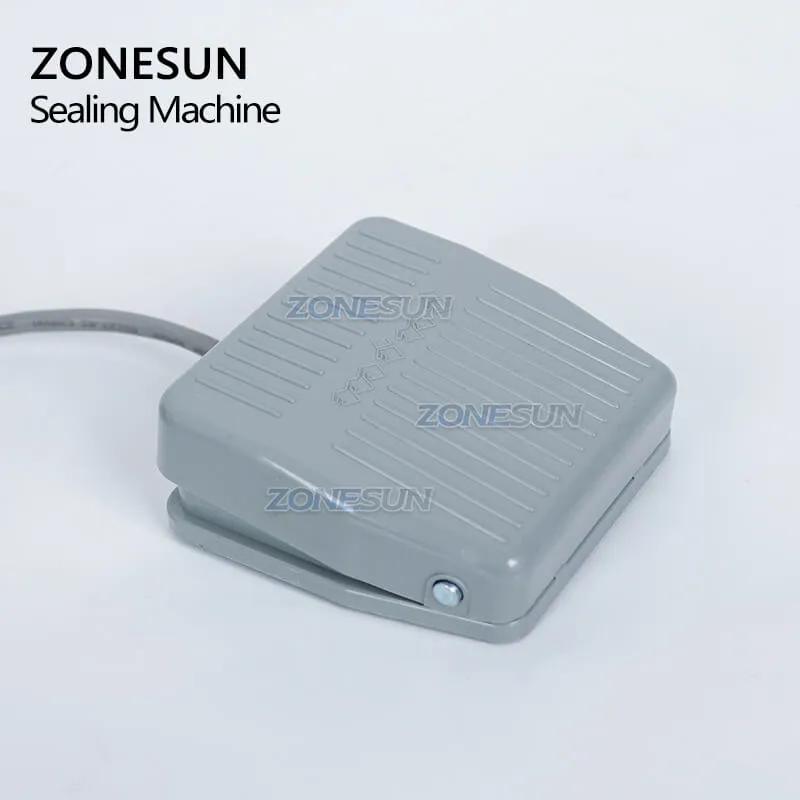

Equipped with pedal switch,this is good for adjusting working parameter when testing the machine,it can help to improve working accuracy.
Designed with the filter,this can filter the impurities when filling liquid,it can prevent that the impurities to damage the filling pump,improves filling accuracy.
