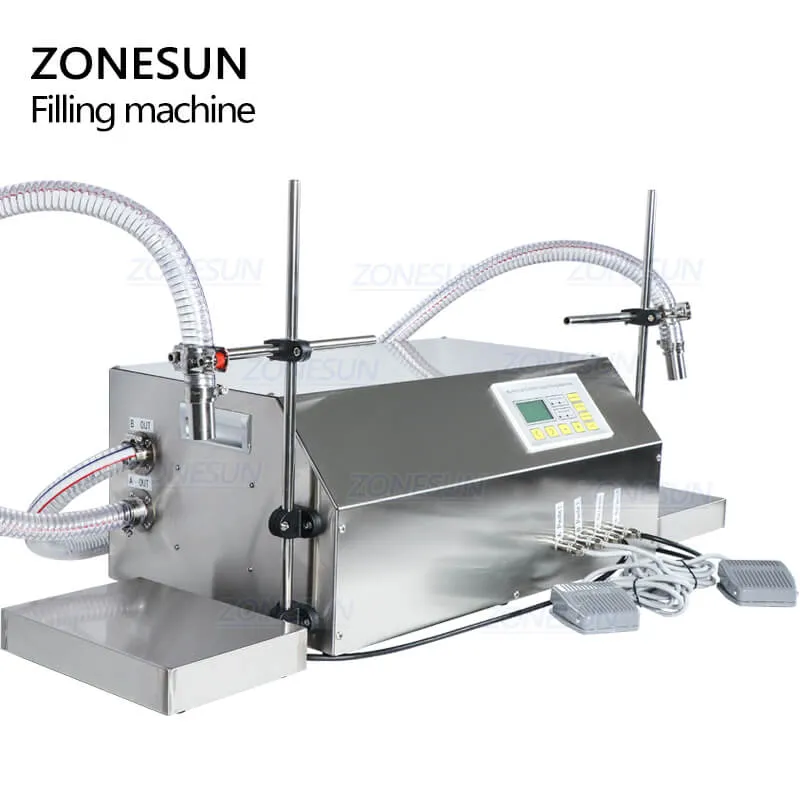

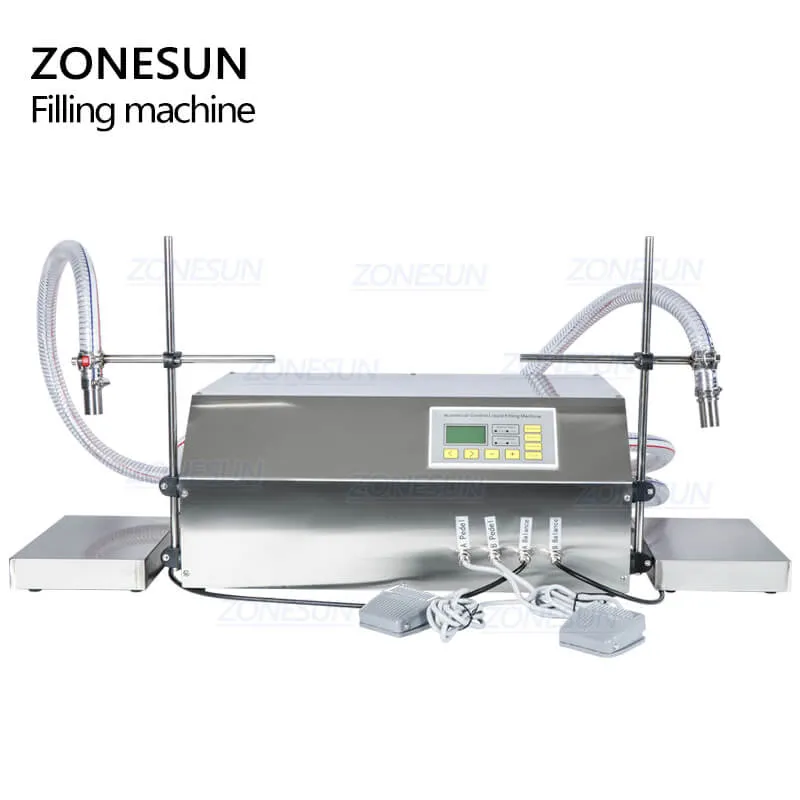

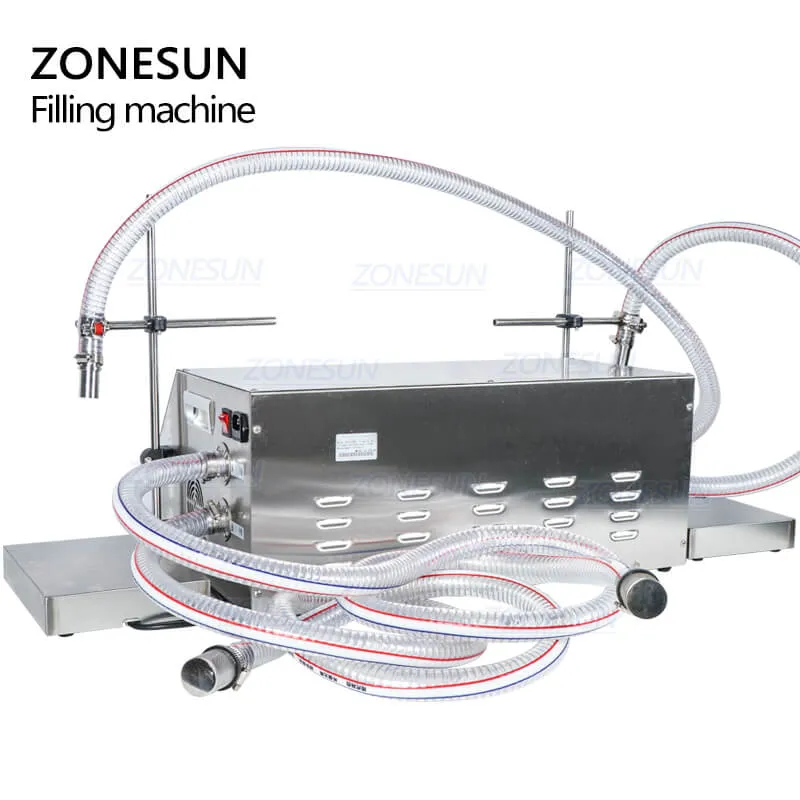

This semi automatic liquid filling machine is equipped with high quality magnetic pump which is suitable for filling solvent, perfume, foamy liquid, cosmetics products, edible oil etc. The high filling accuracy makes it suitable for small laboratory. Compared with other magnetic pump filling machine, it is equipped with the electronic scale to help you control the filling volume better.
Parameter
Machine Model: ZS-DP432W

• Machine Power: 220V/110V 50-60Hz 1100W

• Machine Pump: Diaphragm Pump

• Max Flow Rate: 35L/min*2

• Filling Range: 150mL-35L

• Weighing Range: 150g-100kg

• Filling Error: ±10g

• Filling Nozzle Diameter: 19mm/25mm

• Hose Diameter: 19mm(ID)/25mm(OD) & 25mm(ID)/32mm(OD)

• Hose Length: 3m(inlet)/1m(outlet)

• Liquid Temperature:＜50℃

• Max Suction Distance: 4m

• Max Head of Delivery: 4m

• Memory Function out of Power: Available

• Weighing Device Size: About 250mm*180mm*42mm

• Machine Size: About 600mm*370mm*250mm(L*W*H)

• Package Size: About 700*430*320mm(machine) About 300*290*160mm(weighing device)
  Net weight/Gross weight: About 28kg/30kg
