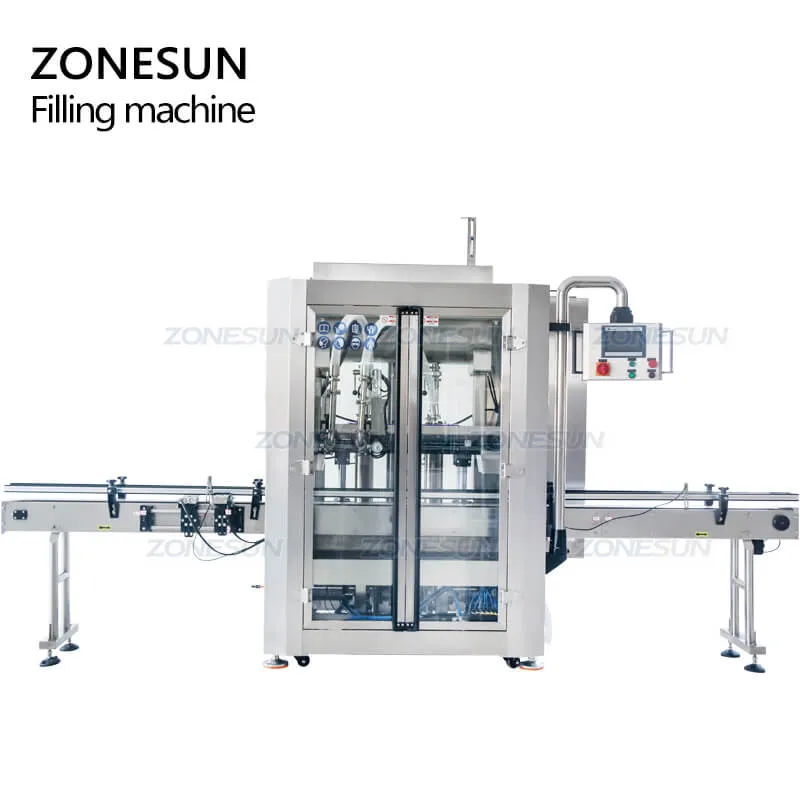

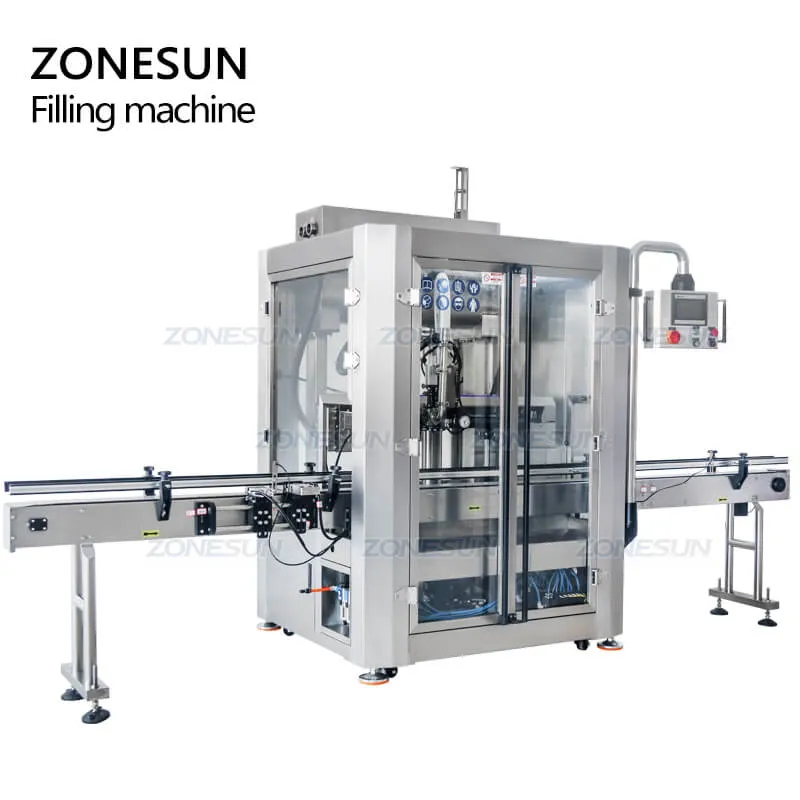

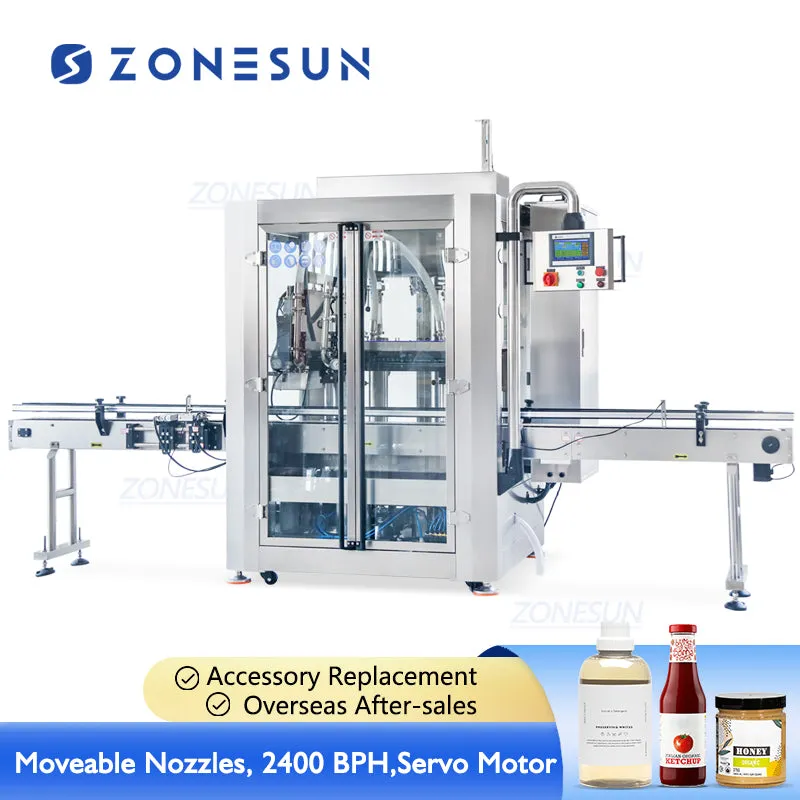

This machine is equipped with servo motor and you just need to enter the certain number to adjust filling range.Compared with other filling machine,this tracking type filling machine can control filling nozzle follow moving bottles during filling work.It reduce production error and improve filling accuractely.It is designed for filling paste like curry paste,tomato sauce,pepper sauce,each nozzle can be controlled separately.

Parameter

Machine Model:ZS-VTPF2
Voltage:380V/220V/110V
Power:8KW
Filling Head:2 Heads(Can be customized)
Filling Range:200-2000ml (Can be customized)
Filling Speed:2400-3600bottles/hour(depend on material and bottle size)
Filling Accuracy:±1%
Air Pressure:0.6-0.7Mpa
Air Consumption:6-7m³/min
Filling Nozzle Moving Distance:About 835mm
Conveyor Size:113*4000mm
Machine Material:Stainless Steel
Machine Size:About 3000*1500*2100mm
Machine Weight:About 515kg

With PLC control panel, it is easy to set working parameters like filling speed.It is with an emergency stop button,ensuring a safe working environment.The language of control panel can be customized as needed.Please contact us if you need.

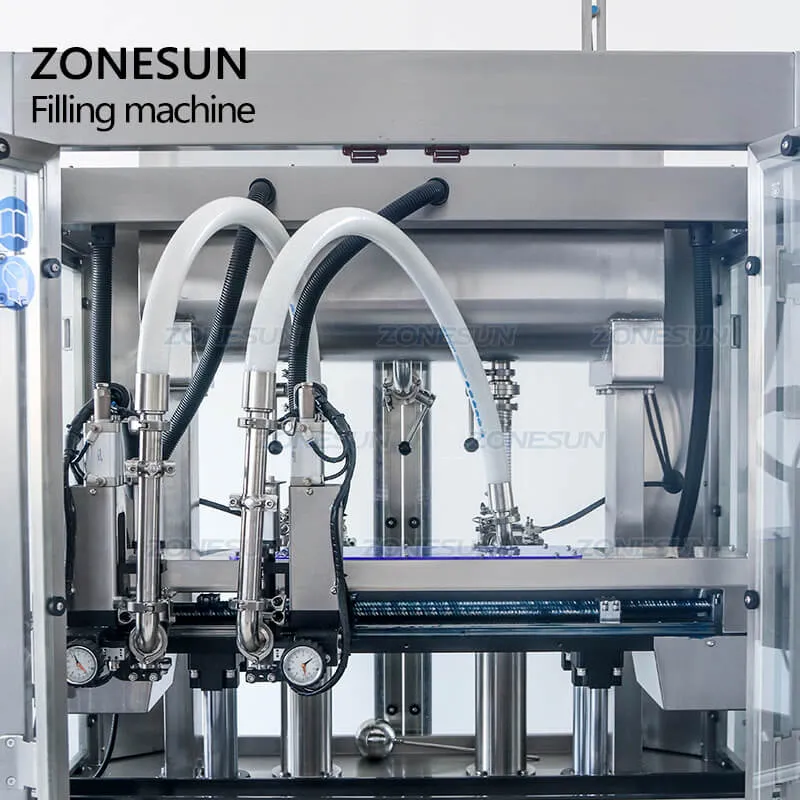

Different from other filling machines, the filling heads of this machine will automatically move with the bottles during filling,rather than stopping to fill.Greatly improve efficiency. With anti-dripping function, it will fill liquid accurately.

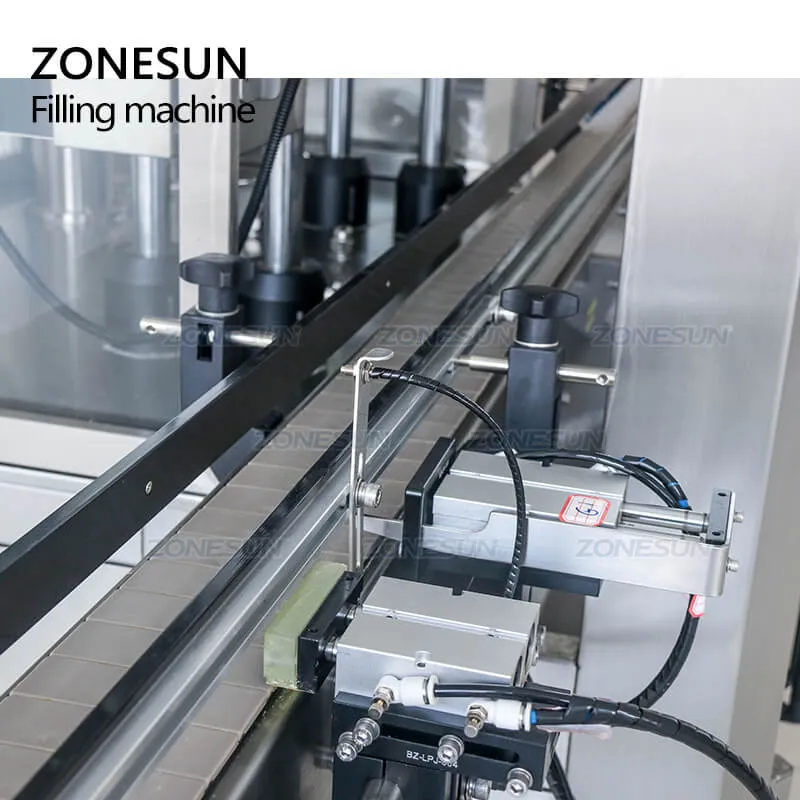

lt is designed for detecting bottles,ensuring they can be filled accurately,realizing automated production.The position and sensitivity of electric eye can be adjusted according to production need.Easy to operate.

With chain conveyor belt, it can transport large volume products steadily and smoothly.Improve work efficiency.The width of feed inlet can be adjusted as needed,making it suitable for products of different sizes.

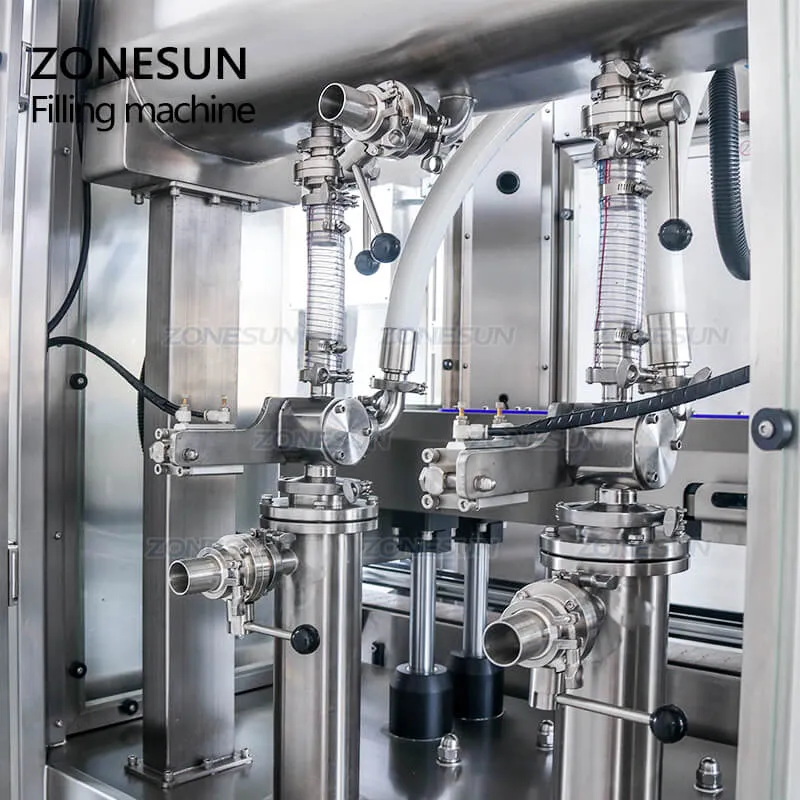

Made of high quality materials, the piston cylinder will measure precisely,which helps to realize quantitative filling.The food grade material makes it possible to fill food materials, ensuring production quality.
