Product Details
＋
Click For Video

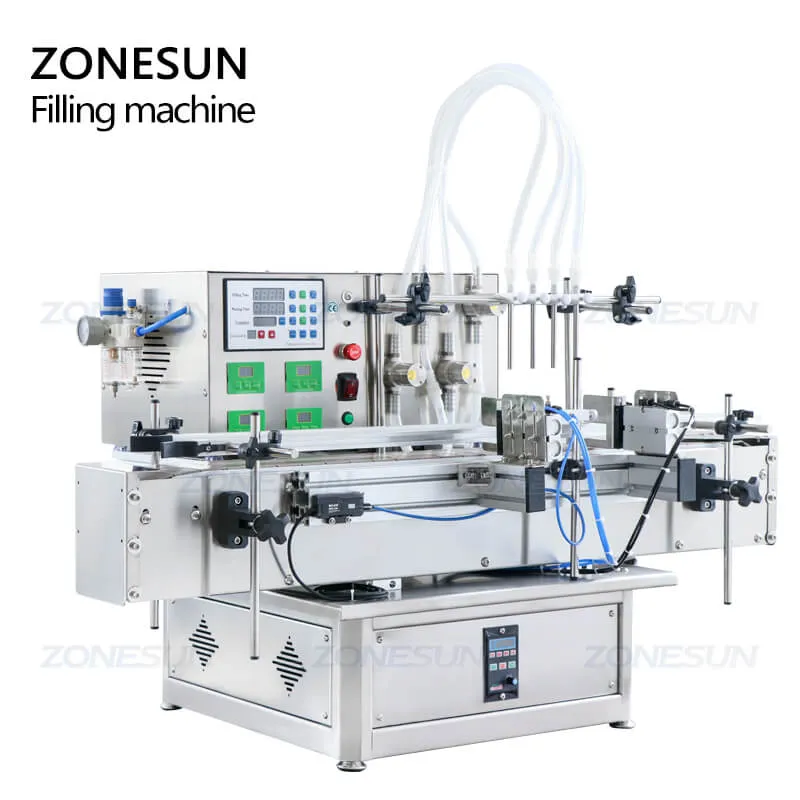

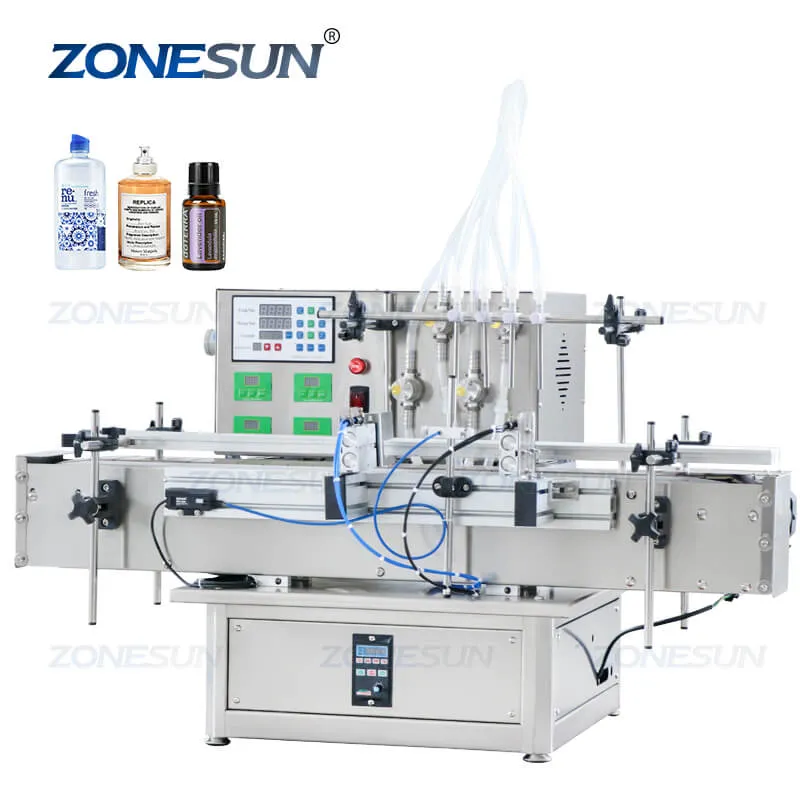

This desktop filling machine is equipped with chain conveyor belt,compared with the leather conveyor belt,this one is with larger capacity,this makes it suitable for filling larger volume and transport them faster and more smooth.The magnetic pump filling machine is high precision that it can be used to fill essential oil,solution,eye drops,inks,perfume etc.
Parameter
Machine model:ZS-DTMP4Y
Power supply:110/220V 50-60HZ 300W
Maximum flow velocity:6000ml/min (Each nozzle and based on water )
Working speed:20-30 bottles/min
Air pressure:0.3-0.4mpa
Filling accuracy:≤±1%( for water)
Dimension of filling nozzle:Standard 8mm and 6mm
Delay range:0.01s-999.9s
Count range:1-99999 times
Size of air compressor connector:OD 6/8mm
Package size:About 1150*650*820mm
Net weight/Gross weight:About 59kg/89kg

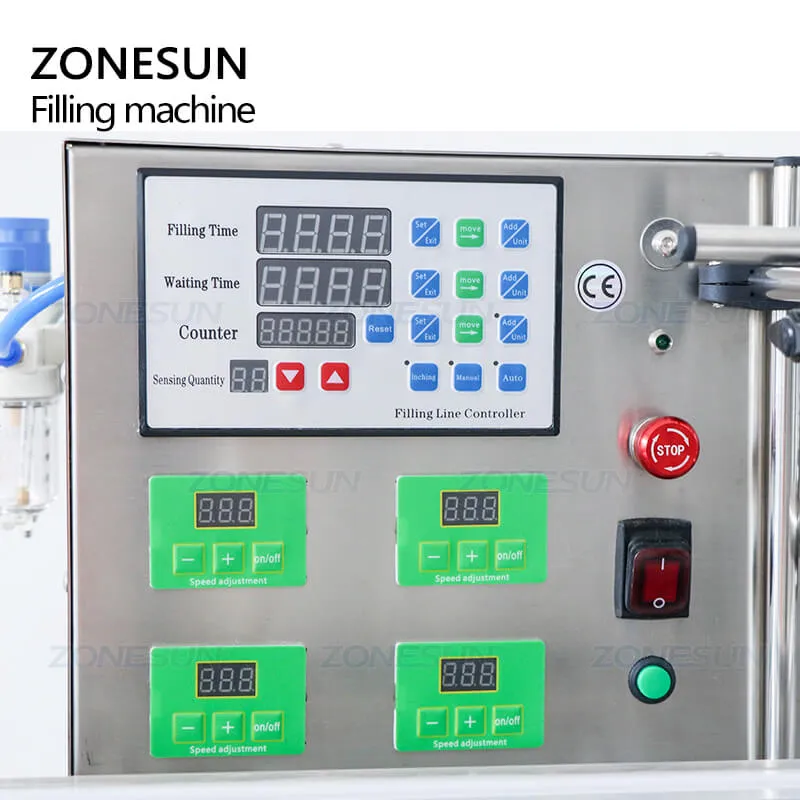

Simple operation panel,can show the detailed setting parameter like the filling time and filling speed,these can be simply controlled according to production need during work.
There are 4 filling nozzles and each one of them can be controlled separately.The height of filling nozzle can be changed by adjusting bracket height.
Made of high quality stainless steel magnetic pump,this kind of pump requires little maintenance and has the advantage of high accuracy which makes it good for filling solution,essential oil,ink etc.
The high quality electric eye can detect passing by containers precisely and control the machine to fill liquid, achieves automated production.This can reduce the production error.

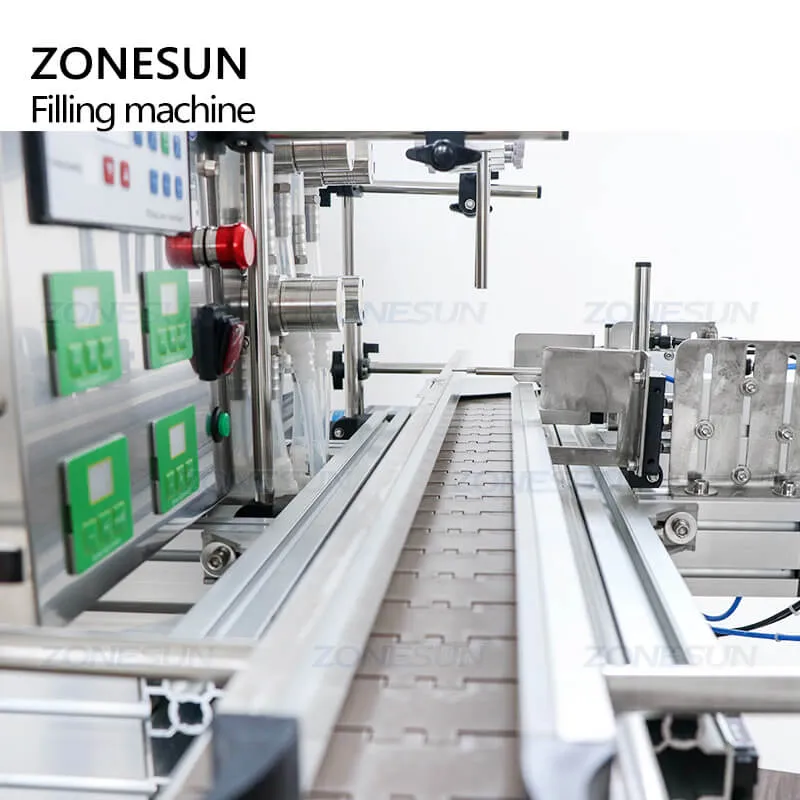

The chain conveyor has larger weight capacity which is good for transport heavier products.Compared with belt conveyor,it is more suitable for large volume products.The conveyor speed can be controlled separately .
