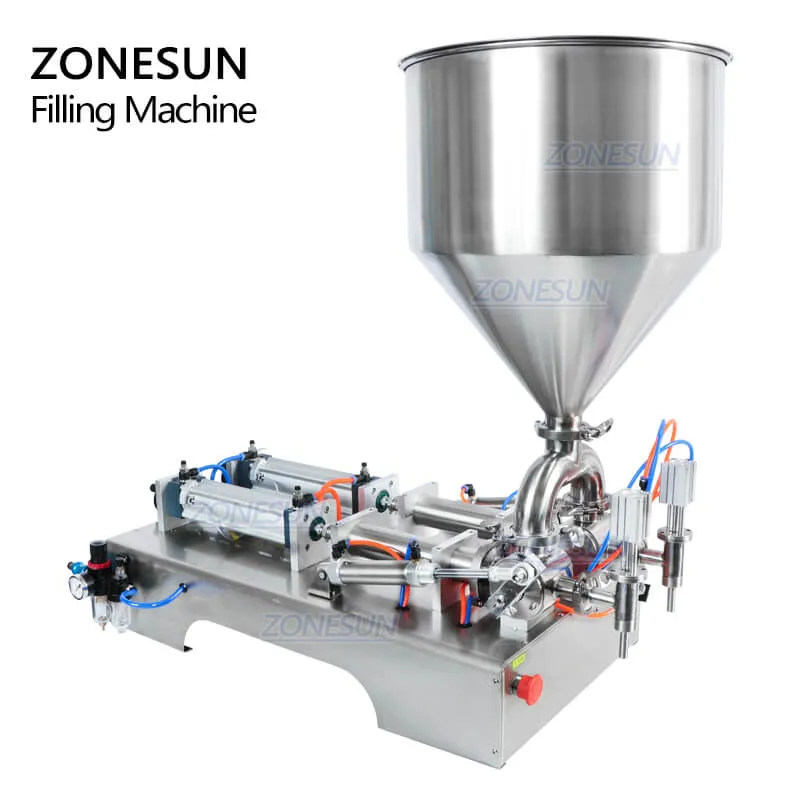

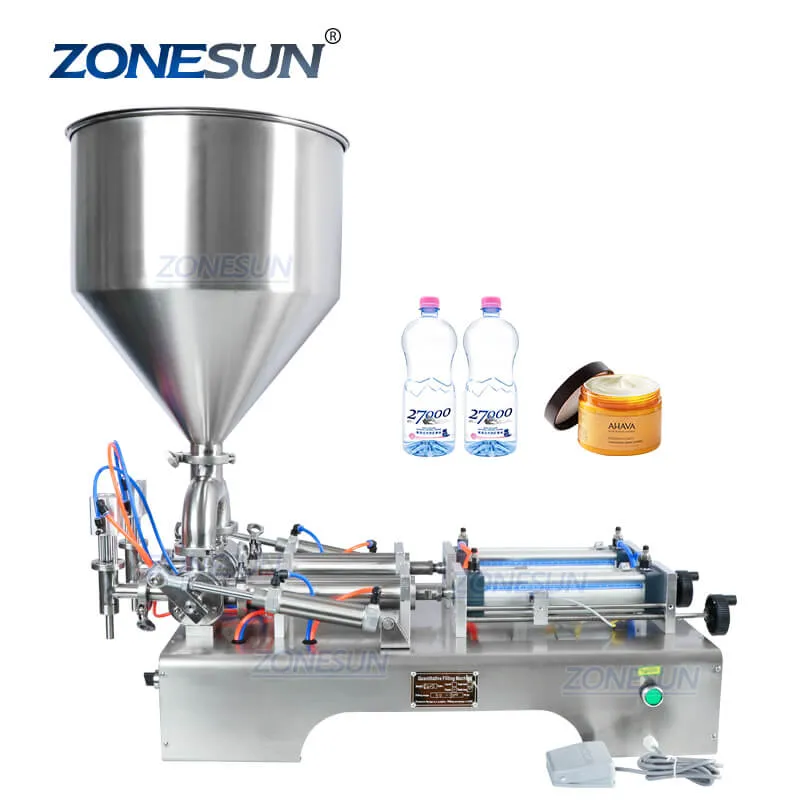

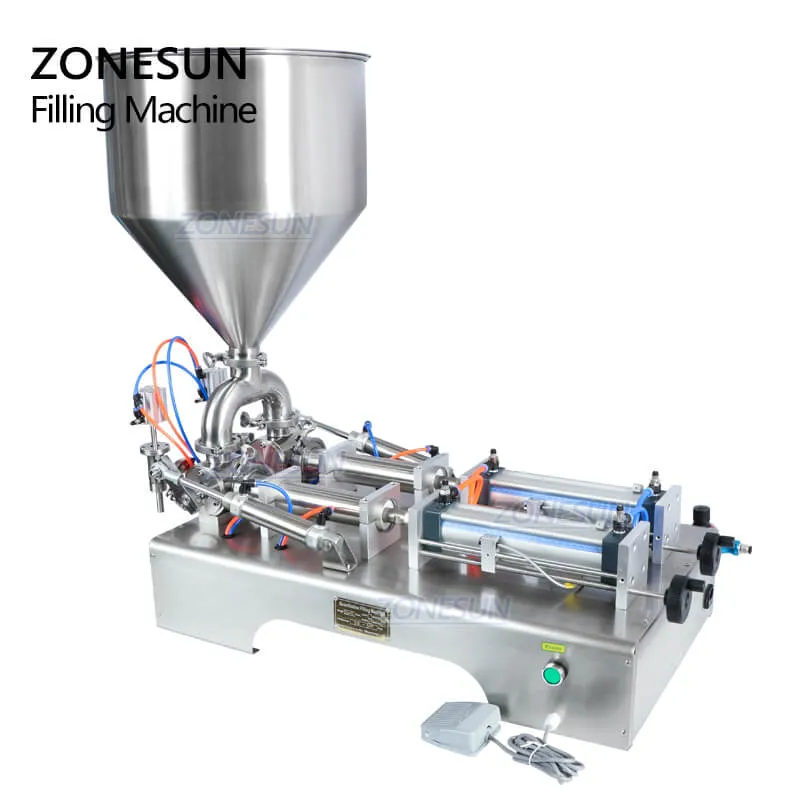

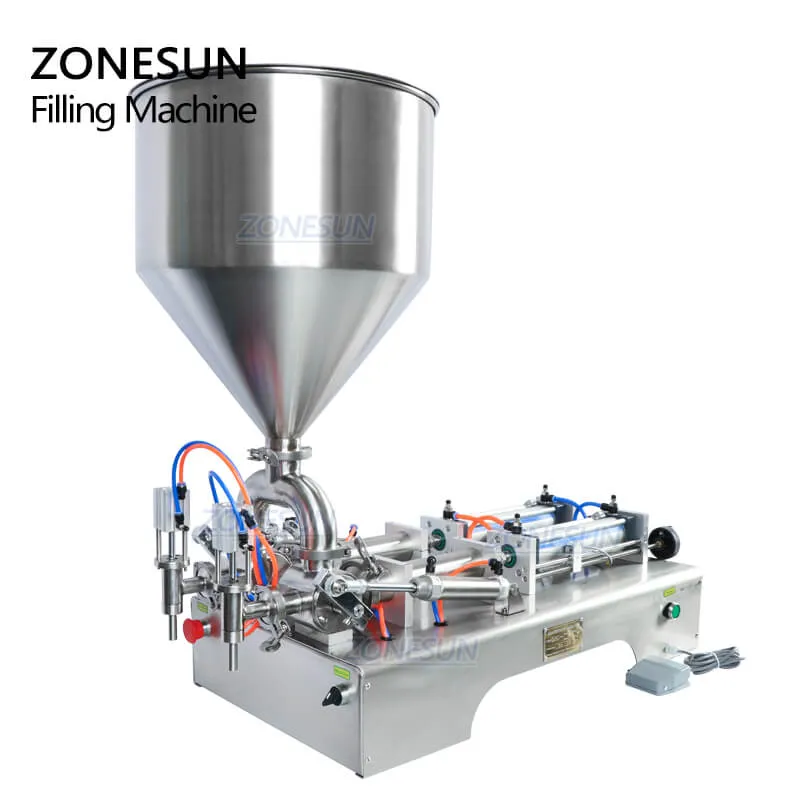

This semi automatic filling machine is suitable for paste and liquid,such as cream,chocolate,perfume, essential oil,shampoo,etc.The two filling nozzles can be controlled separately,easy to operate.The hopper can be changed into hose according to production needs.The machine can be widely used in beverage,daily chemical,cosmetic industries.Help to improve working efficiency.
Parameter
- Machine Model:ZS-GY2
- Voltage:220V/110V 50-60Hz
- Power:10W
- Filling Range:5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml
- Filling Speed:10-50bottles/min(depend on bottle size and liquid)
- Air Pressure:0.4-0.6MPa
- Filling Accuracy:±0.5%
- Driven Type:Electric and pneumatic
- Air Capacity:＞30L
- Machine Size:About 800*440*880mm
- Package Size:About 960mm*515mm*330mm(machine)
- About 440mm*460mm*540mm(hopper)
- Net weight/Gross weight:About 35 4kg/43 5kg

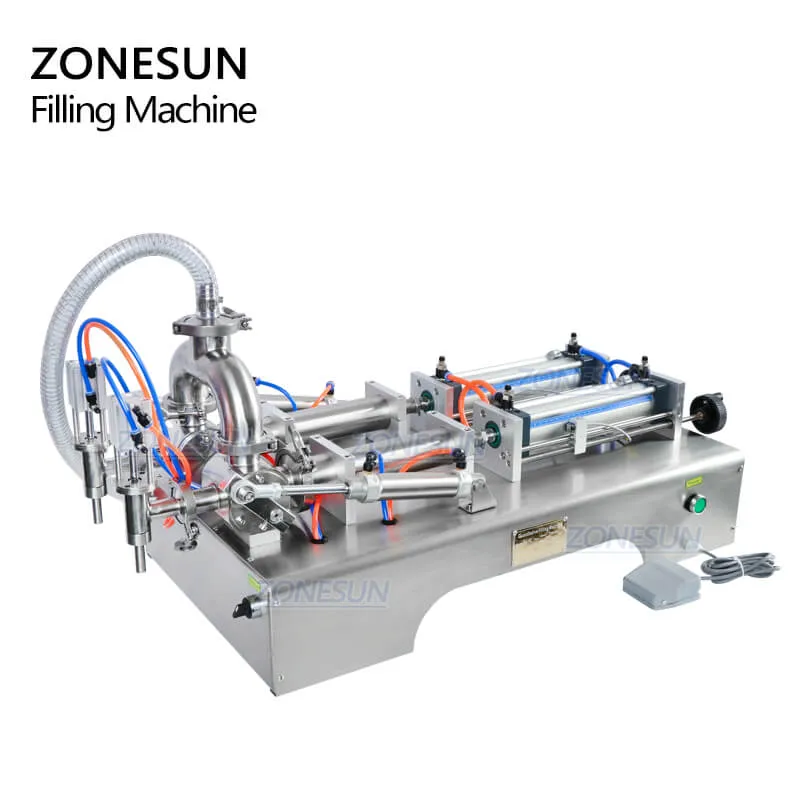

The feeding container can be changed by the knob, helping to improve working efficiency.Please notice that if you change the hopper into hose, the machine can only fill liquid, not suitable for filling paste.

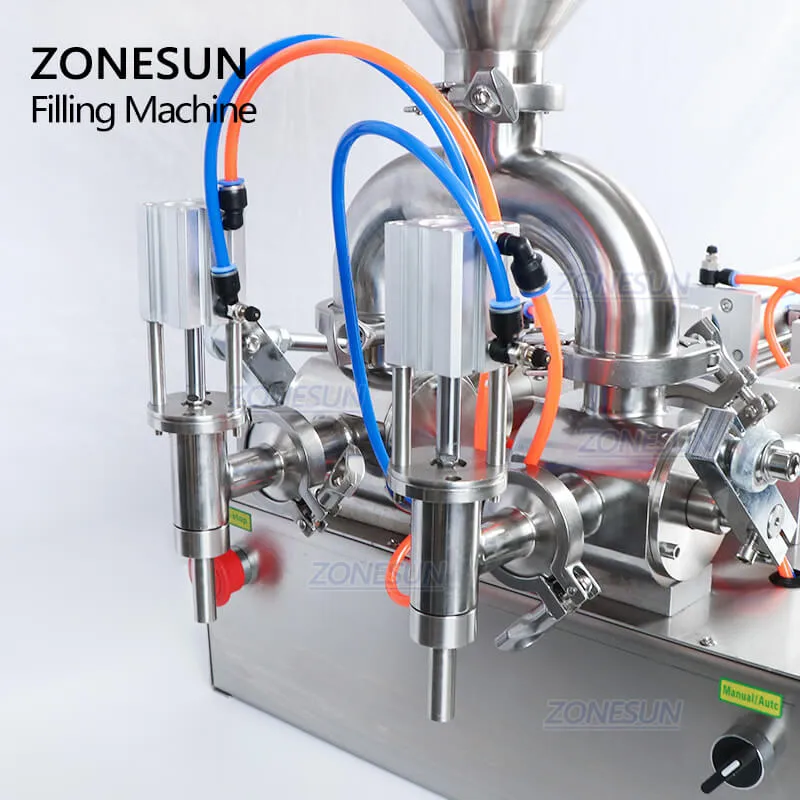

Both of the nozzles have anti-drip-ping function, which ensures the filling accuracy.They can be controlled separately.Easy to operate.

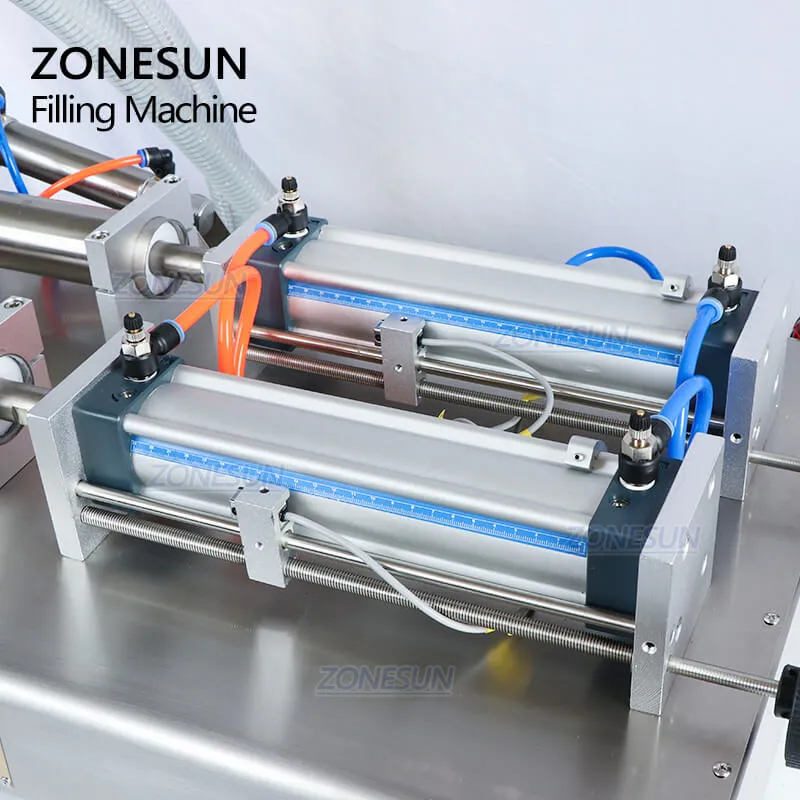

The black handle is used for adjusting the filling volume.The cylinder is with detailed scale, making it more accurate to fill liquid.
The filling speed of the two nozzles can be adjusted separately by the left knobs. In automatic mode, operator can adjust the internal time by the right knob.
This machine has two working modes(Automatic mode / Manual mode). In automatic mode, opera-tor can use the pedal switch to test the machine. In manual mode, operator can fill bottles by pressing the pedal switch.

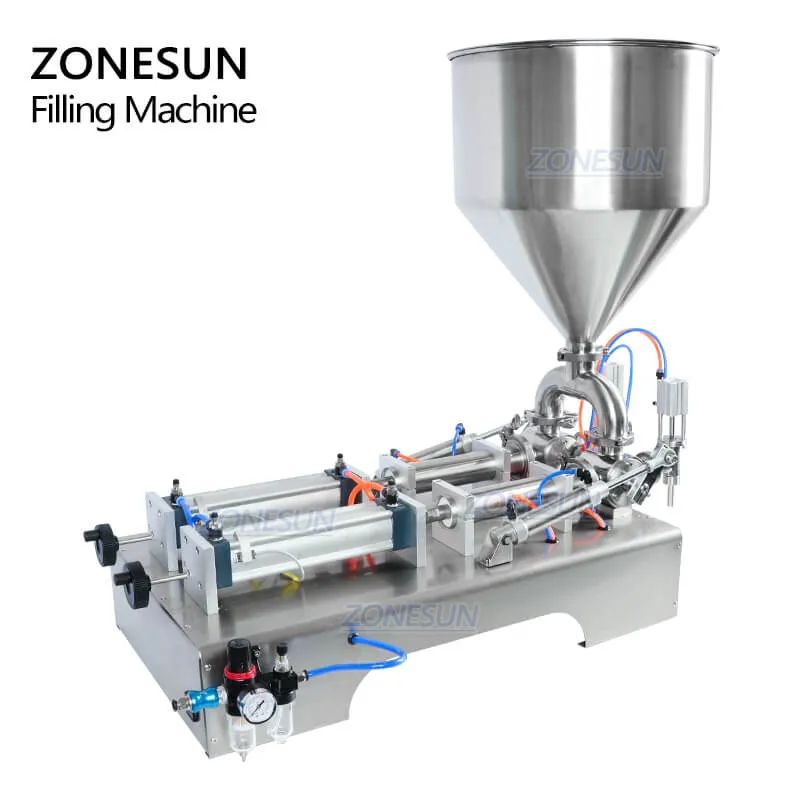

The barometer is designed for watching ari pressure in real time,ensuring a safe working environment. This machine need to work with ari compressor, which should be bought separately. lf you need, please contact us.
