Video For Magnetic Pump Filling Machine

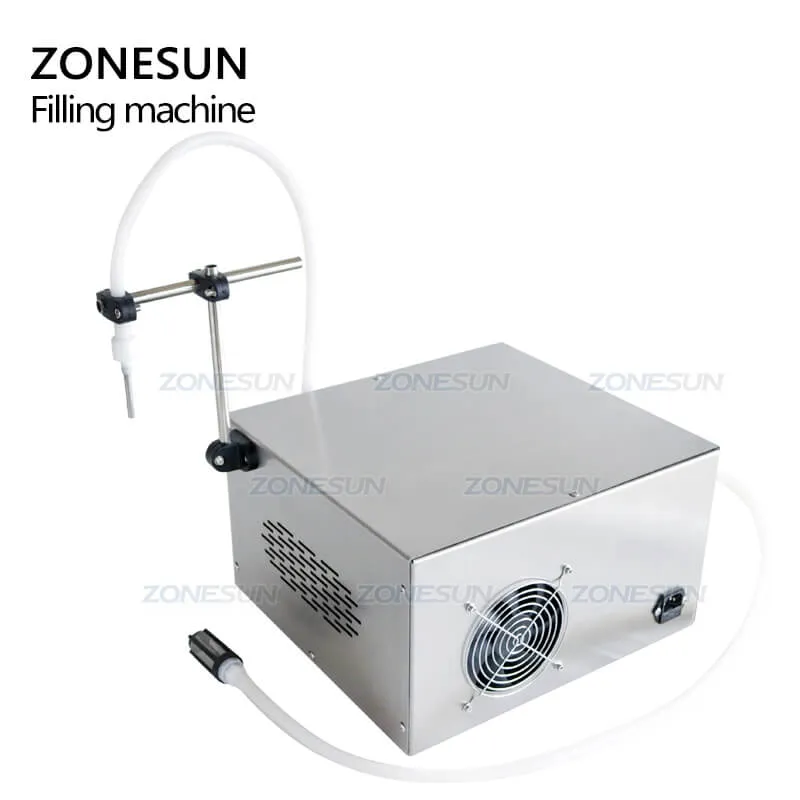

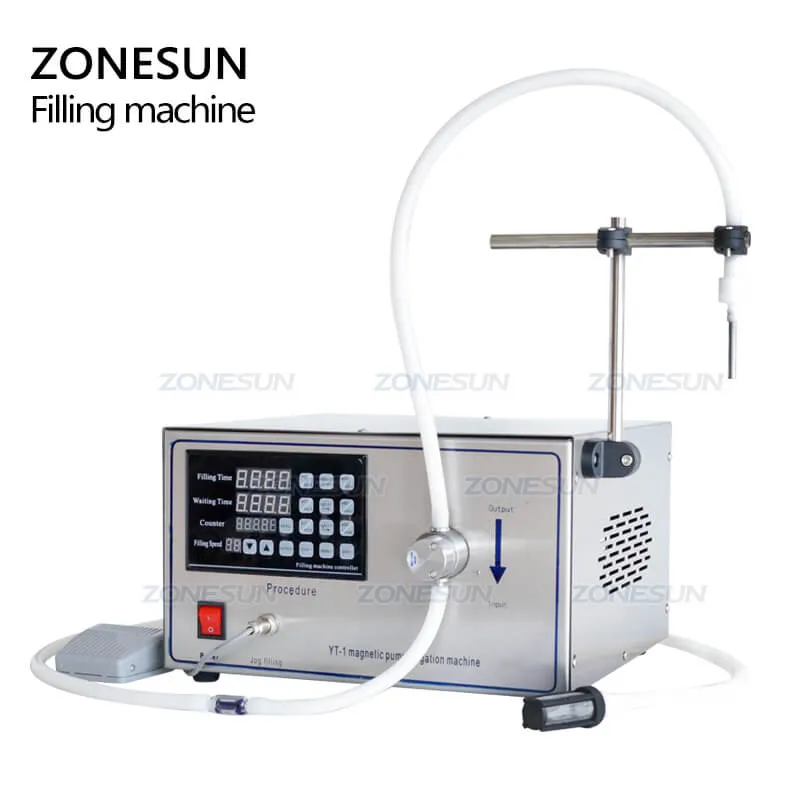

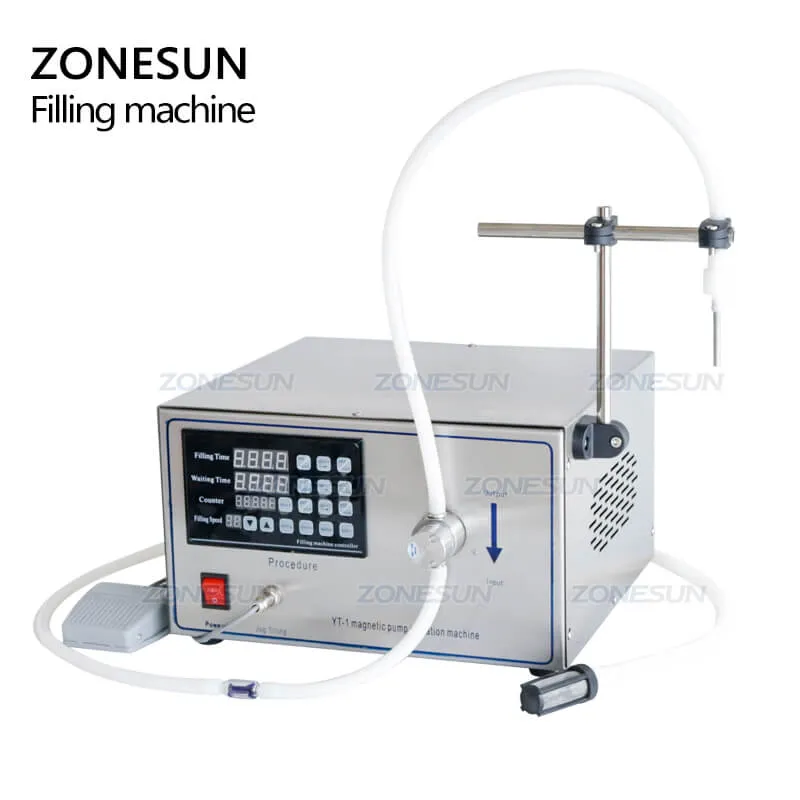

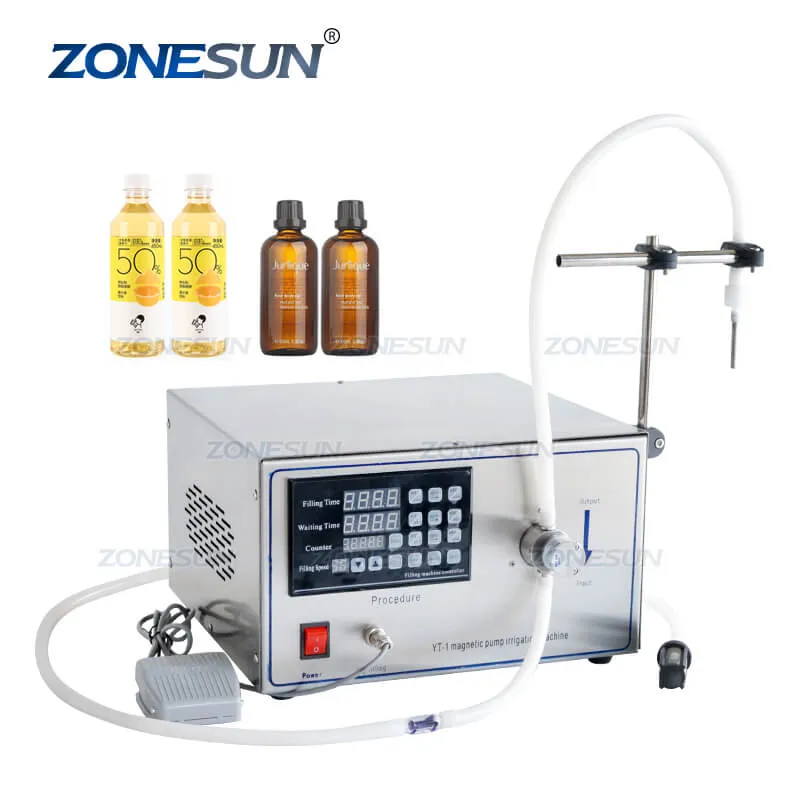

This filling machine is equipped with magnetic pump,it is good for filling water,juice,essential oil,solvent etc.This machine can be controlled by pedal switch or work automatically.It is widely used in food,drinks,daily chemical industries.

Parameter

Machine model:YG-1
Machine voltage:110/220V 50-60HZ
Power:40W
Filling accuracy:±1.5%
Max flow rate:3L/min
Machine size:350mm*322mm*210mm
Machine weight:About 8.25kg
Package size:450mm*415mm*250mm
Package weight:About 9.3kg

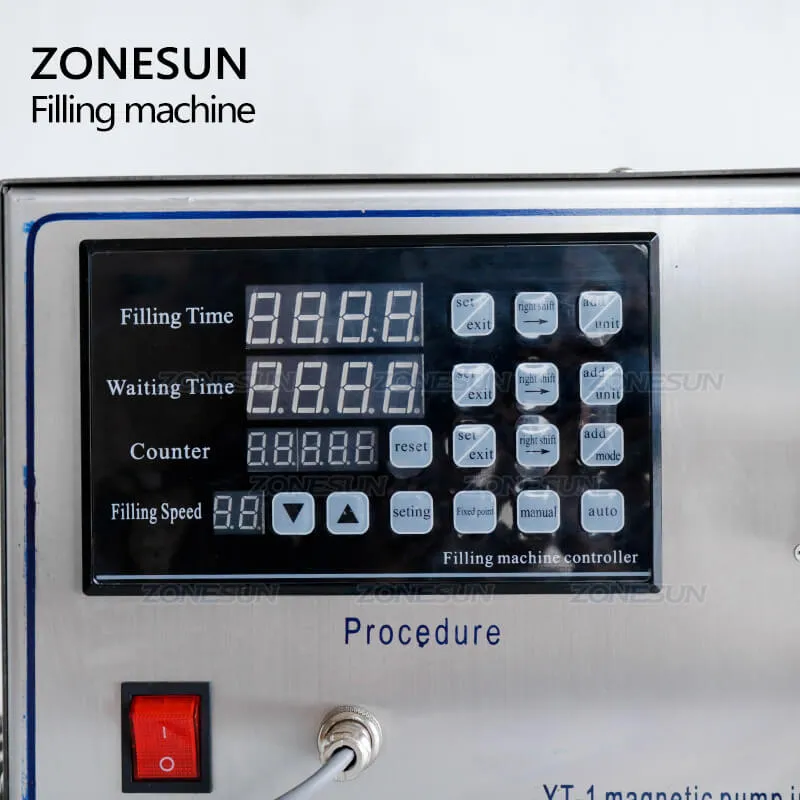

Simple control panel and working parameter like filling time,filling speed can be controlled easily.Visual working data makes it to test machine.

Multiple filling nozzle can be customized according to operation need..The check valve can prevent from liquid backflow ,improves filling accuracy.

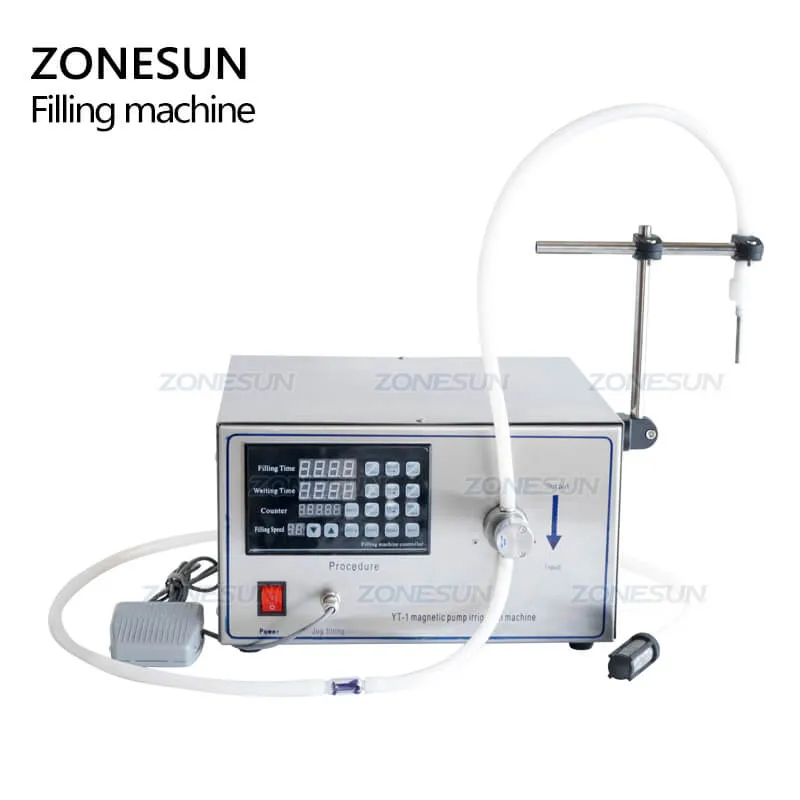

Equipped with pedal switch,this is good for testing machine.It can work automatically as well after setting parameter,this helps improves working efficiency.

Equipped with 316 stainless steel magnetic pump,it is suitable fill weakly corrosive liquid and it can fill liquid accurately.
