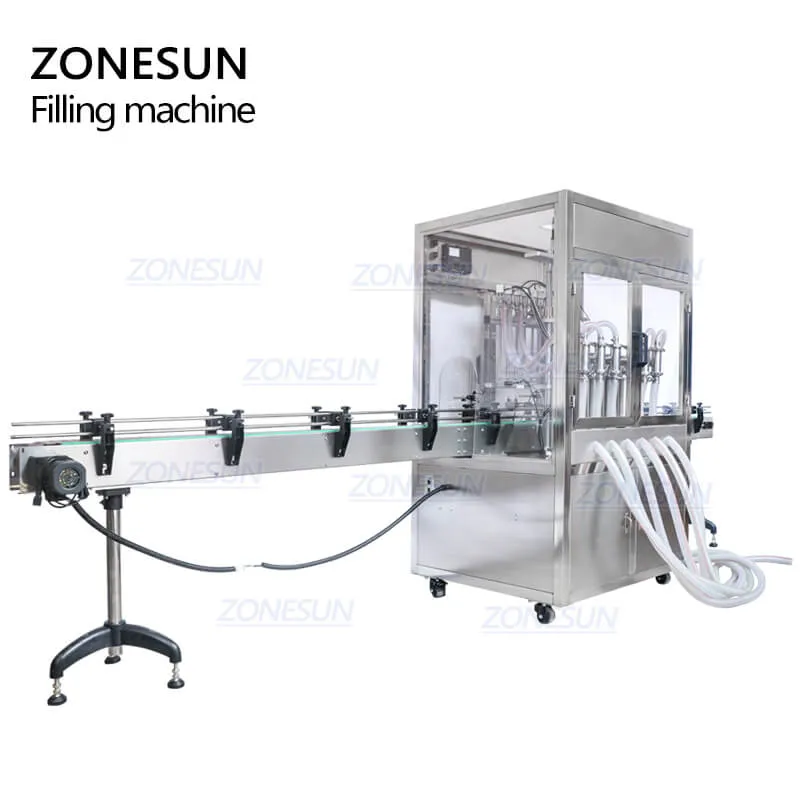

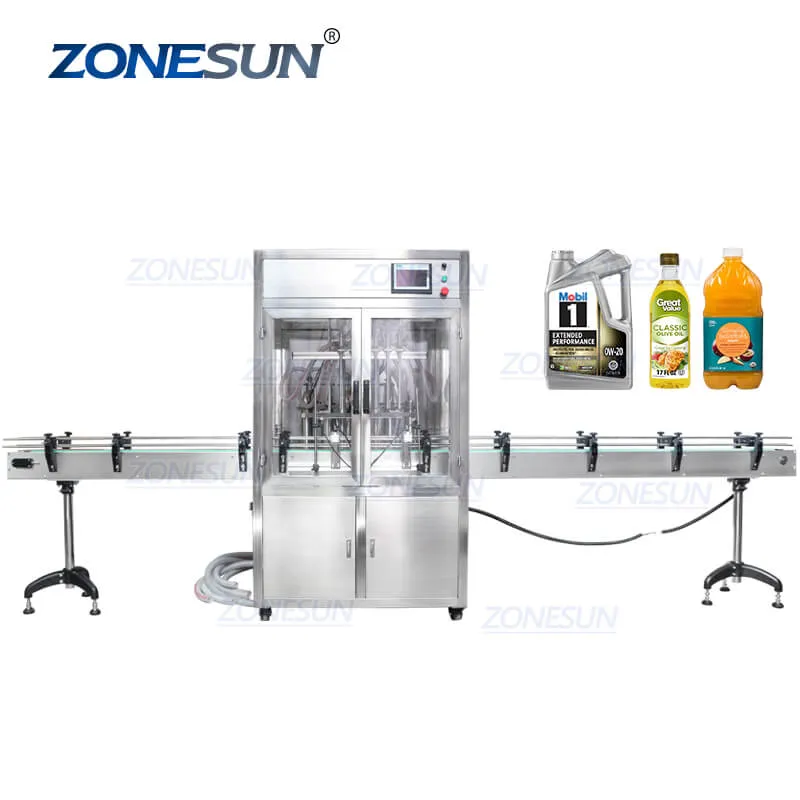

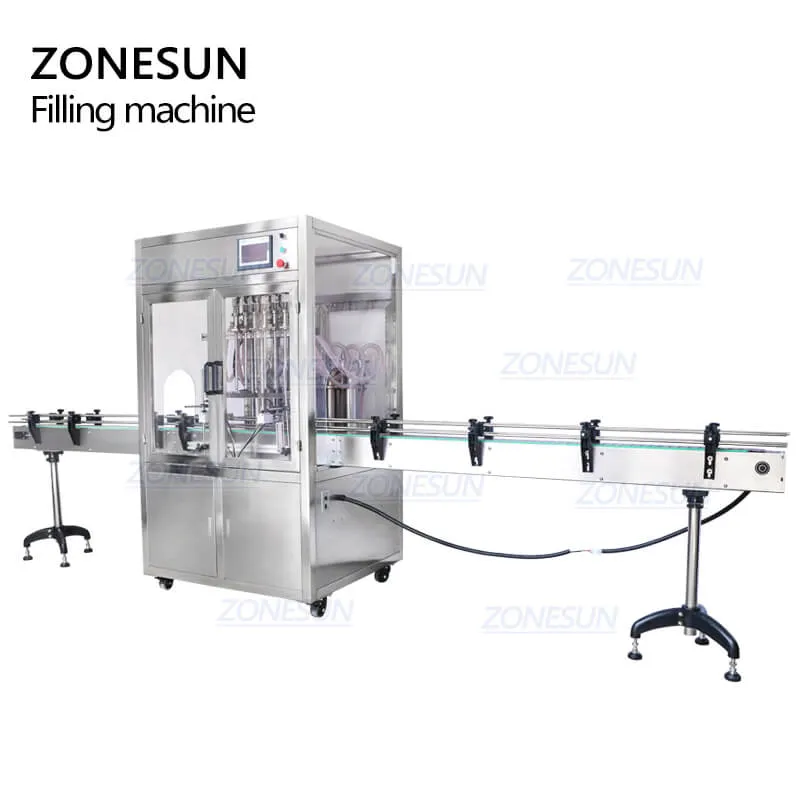

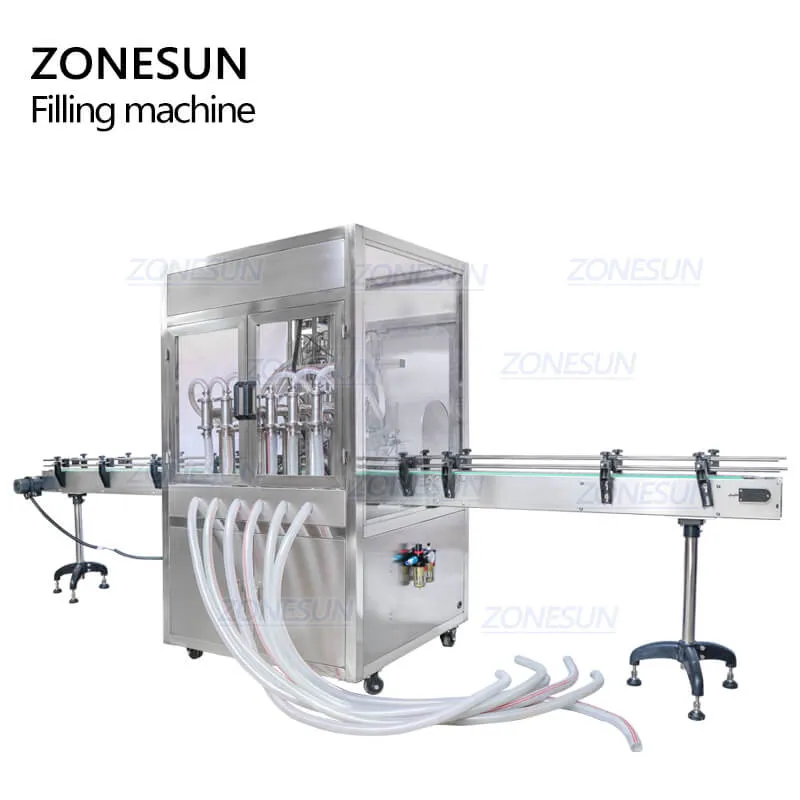

This automatic piston liquid filling machine is driven by air cylinder, it is suitable for low viscosity liquid like water,juice,grease,olive oil etc.Different filling range can be chosen according to production need.Multiple filling nozzles can be customized as well.It is widely used in food,daily chemical,and beverage industries.
Parameter
Model:ZS-YTDC6
Voltage:110/220V 50-60HZ 800W
Filling Range:100-1000ml
Working Speed(Based On Water):30-40bottles/min
Filling Accuracy:≤士1%
Filling Nozzle Size:Customized
Air Pressure:0.5-0.7MPa
Conveyor Length:2000mm(standard)/4530mm(custom version)
Conveyor Material:Plastic (standard)/stainless steel (custom version)
Size Of Air Compressor Connector:OD 10mm
Machine Size:About 1120*990*940mm
Package Weight:About 486kg
Package Size:About 1600*1210*2160mm
Simple operation panel,it can be customized in different kinds of language.The visual working data makes it easier to test and adjust the machine,helps to save time. We use imported operation panel which improves the product quality.
To realize automated production,this machine is equipped with high quality electric eye,which can detect passing by bottles and transfer information to control the machine to work or not.
The chain conveyor belt is with large loading capacity,it can transport bottles faster and stably.The guard rail of conveyor belt can be adjusted according to bottle diameter.

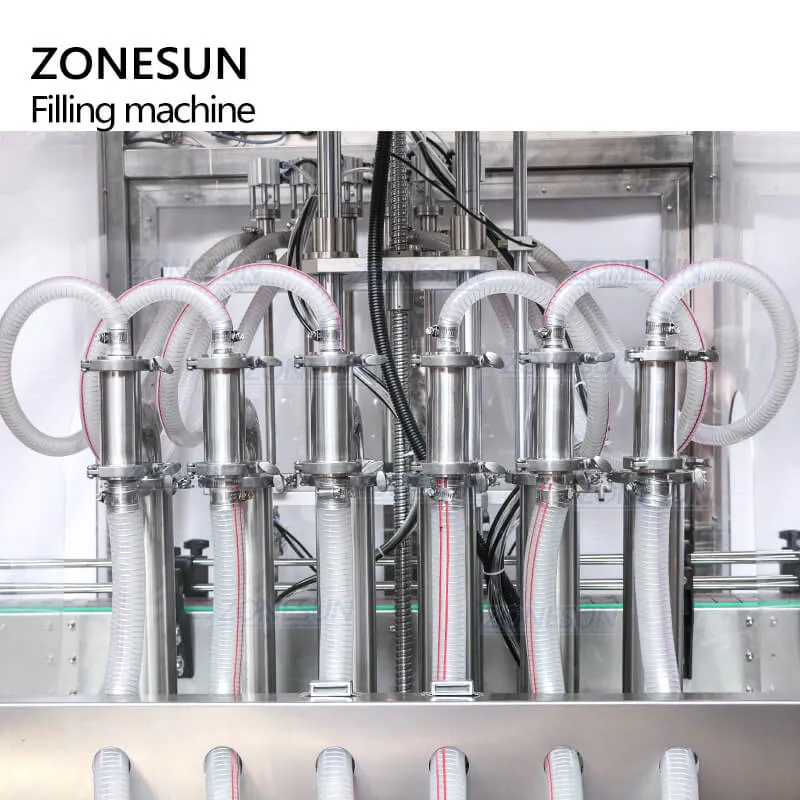

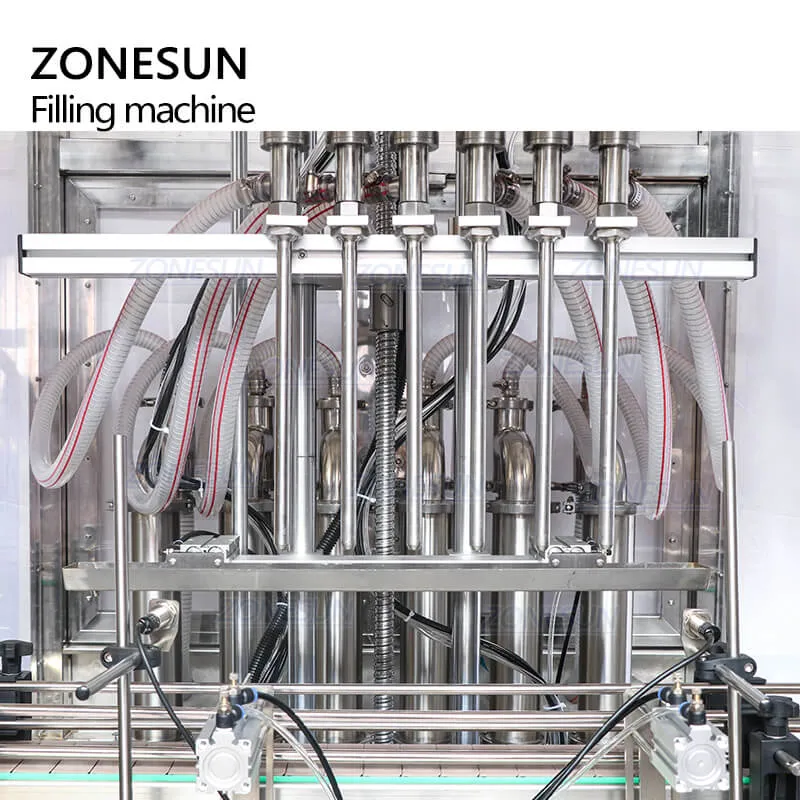

The magnetic switch is used to control filling range,each filling nozzle can be controlled separately.There are two small screws near air cylinder,these are used to control the input and output of air,so that can control the filling speed.
